Numato Lab Ethernet GPIO
16-channel digital I/O with two-way feedback
High quality GPIO device providing control over digital inputs and outputs with two-way feedback. 16 TTL GPIOs individually configurable as input or output.

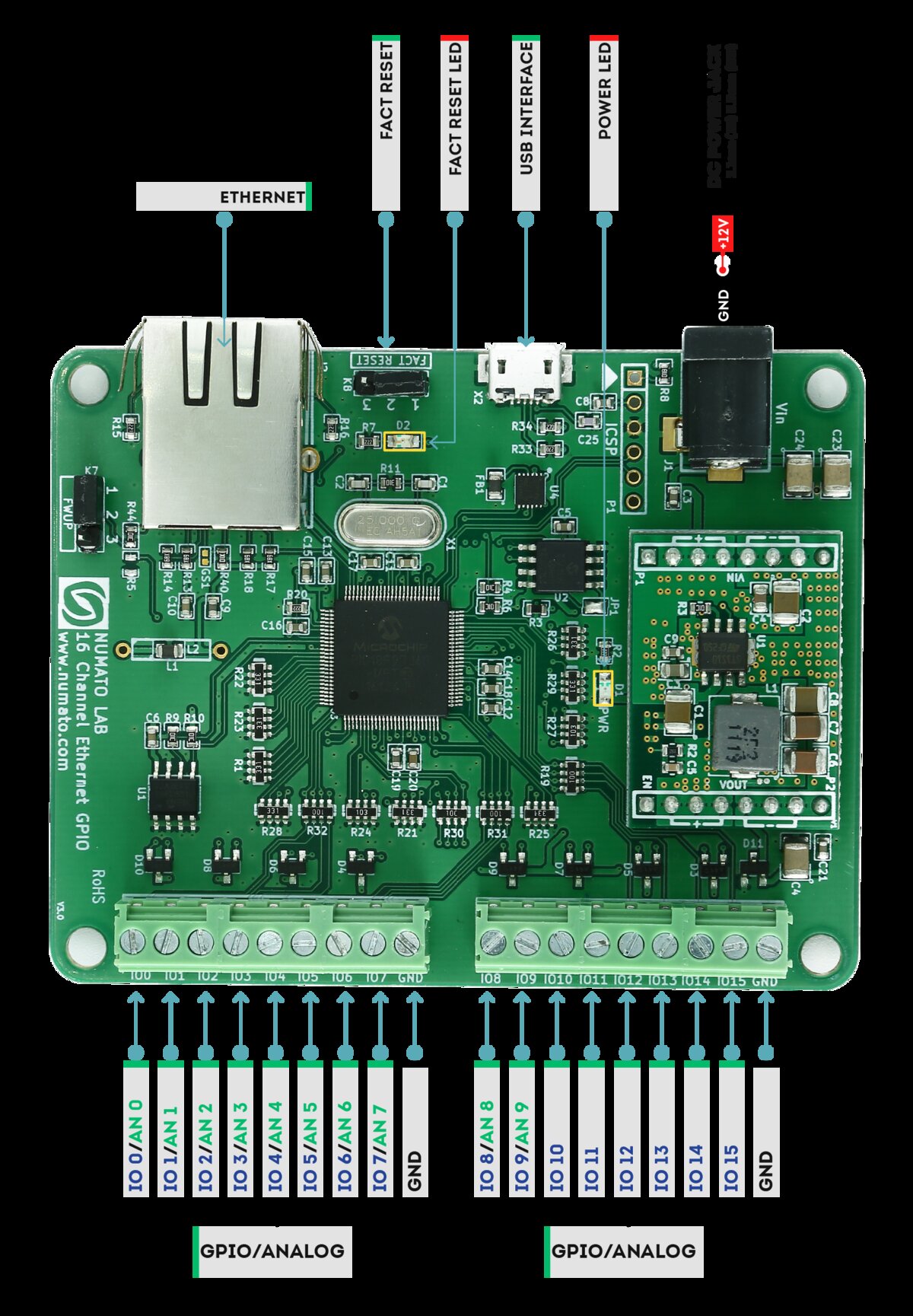

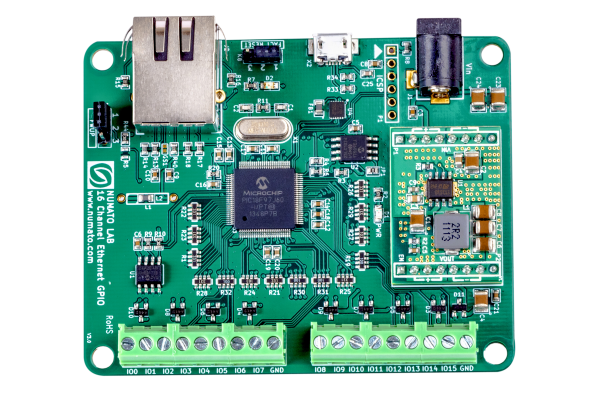

A low-cost, easily deployable solution for connecting your Q-SYS Core to other electronic circuitry through a network. The Numato Lab 16 Channel Ethernet GPIO is an ideal product to make up for the lack of GPIO on modern cores, providing two-way feedback on digital inputs and outputs over a standard network connection.
Specifications
- 16 TTL (3.3V) compatible GPIOs, all individually configurable as input or output
- 10 analog input channels (multiplexed with GPIOs) at 10-bit resolution
- 12V 1A power supply (not included)

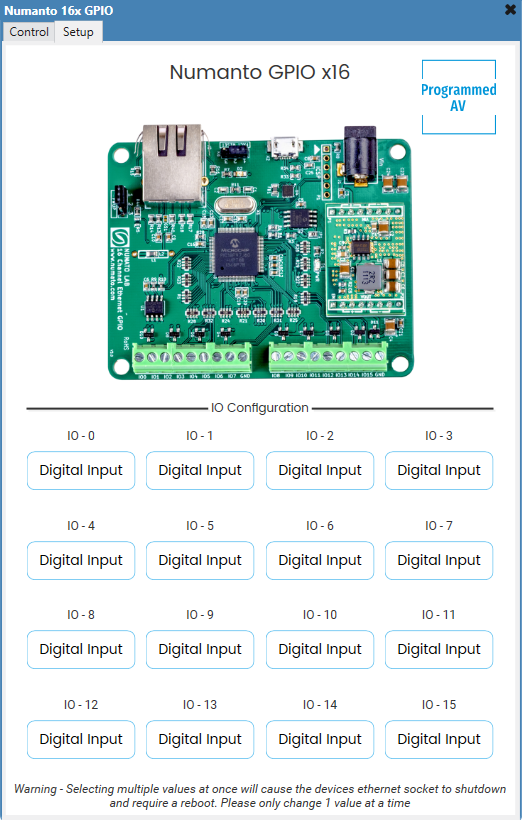

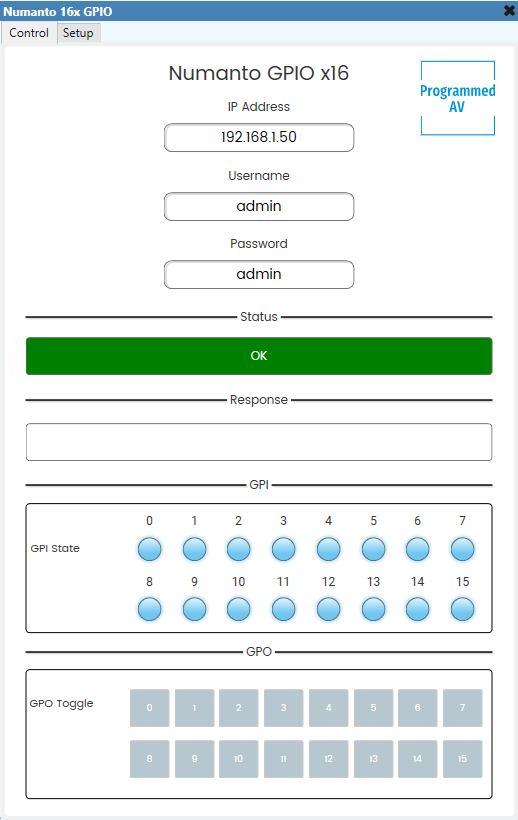

- Note: Analogue inputs are not currently supported by the plugin
Important: The device should be appropriately housed. Leaving the board exposed could result in unwanted short circuits.
Applications
Home automation, lighting control, garden equipment control, industrial automation, test fixtures, and DIY/hobby projects.
Licensing
Single use, attached to a single core, upon which it can be used an unlimited number of times.
Purchase requires: Licensee/job name and Core Locking ID.
